Tension Fabric Light Box Stretchable Size Shape Customizable

What is tension fabric light box?

A tension fabric light box typically consists of a lightweight aluminum frame and a stretchable fabric graphic and built-in LED lights.
Its frame made of aluminum alloy, which is lightweight yet sturdy. It can be easily assembled and disassembled, and comes in various shapes and sizes to meet different display needs.

Its backlit fabric used is high-quality stretch-resistant soft film, it is printed with high-definition graphics and images using advanced digital printing technology, ensuring vibrant colors and sharp details, it is also called stretch fabric light box.

Tension fabric light box working principle

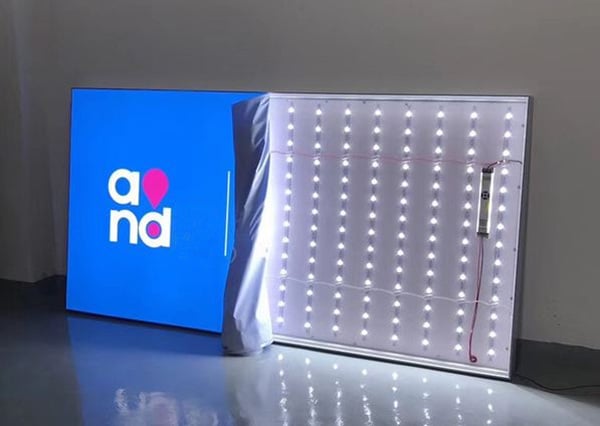

The fabric is tightly stretched over metal frame and then illuminated from behind by backlit energy-efficient LED lights. The even distribution of light through fabric creates a bright, eye-catching promotion display.

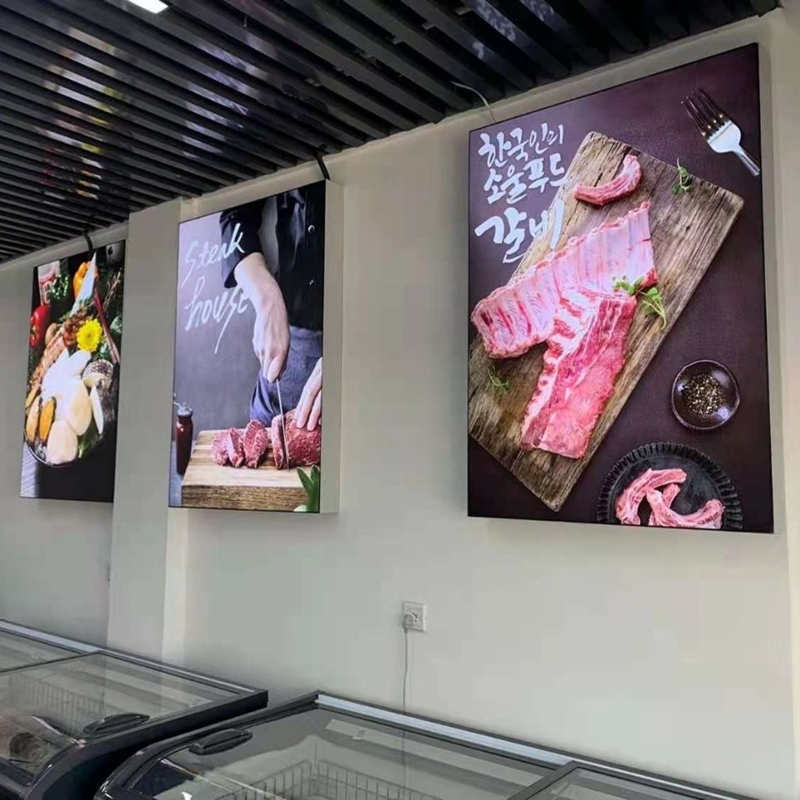

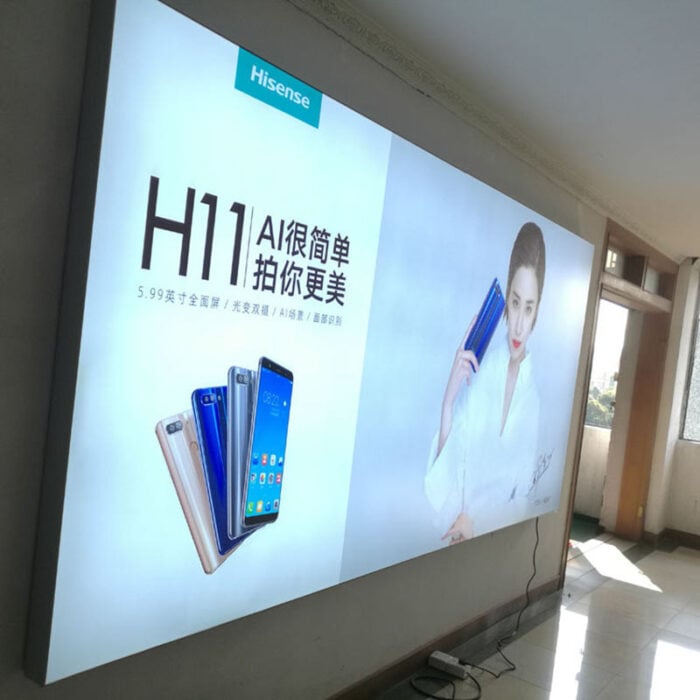

*wall mounted tension fabric light box with high definition graphic*

Our tension fabric light box advantages

Main advantages of our tension fabric light box include: good advertising effect, strong visual impact, diversified display content, high durability, energy saving and environmental protection, low noise, easy installation and maintenance, convinient for shipping and carrry, simplicity and elegance, quick frame replacement, LED energy saving and brightness, customized appearance and size, widely used, etc.

Adding with program function, this stretch fabric light box will become as dynamic light box.

Specifications

Brighter and more stable LED lighting.
High-definition graphic: high brightness of screen restores true colors.
Seamless splicing of profiles, high-end and beautiful, durable aluminum material, and does not deform even in large sizes.
High quality power supply, safer and more stable, with minimal noise: the measured noise of power supply’s cooling fan does not exceed 60 decibels.
Soft film light box fabric adopts heat transfer printing, which provides a more three-dimensional effect: it reflects designer’s design concept to a greater extent and displays true colors of graphics.
No flickering.
Frameless with full screen.
Profile colors: silver, black.
Color temperture: 6000-9000K.
With 15mm depth slot, graphic will not fall off.
Built-in upgrade transformer.
No need to punch holes for splicing corners, 90 degree seamless splicing is airtight.
Shipped in bulk parts or finished product as your need.
With or without baseplate optional: If you need backboard, LED lights will be fixed onto backboards, if you do not need backboards, LED light strips should be fixed onto the wall(the wall should be flat and smooth).

Special features you need pay attention on tension fabric light box

UV soft film image is generally 1-2% smaller than the actual size. The soft film is elastic and can be stretched.
If stretch fabric light box graphic is difficult to stretch during the installation process, you can use a hair dryer to heat it to increase elasticity of the soft film.

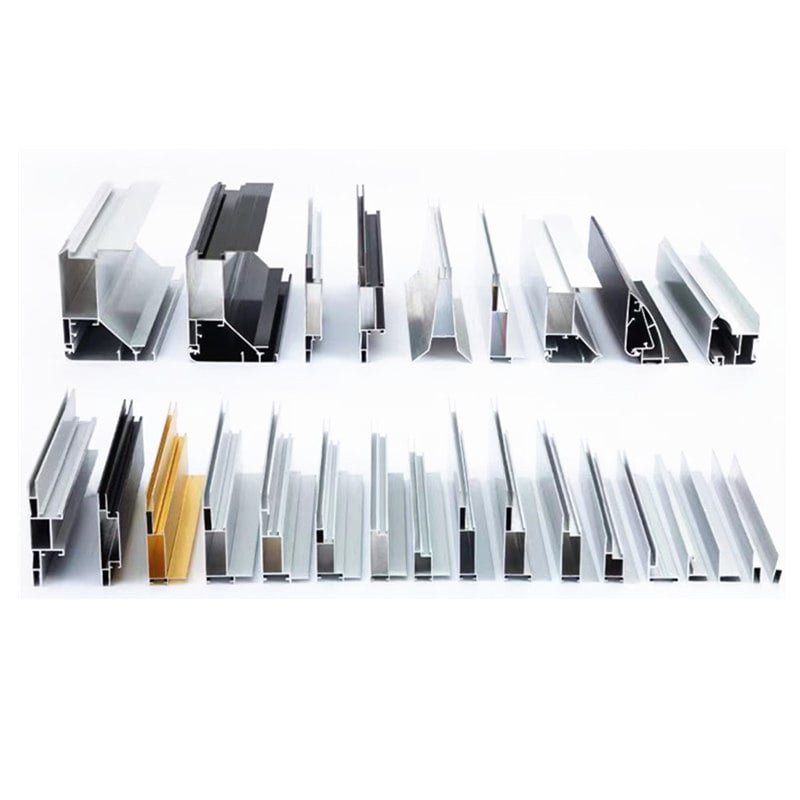

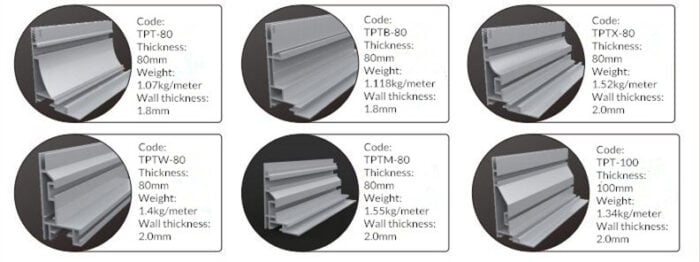

tension fabric light box with various sizes aluminium profile

*4 colors types profiles of tension fabric light box*

Custom tension fabric light box

Tension fabric light box size and thickness.

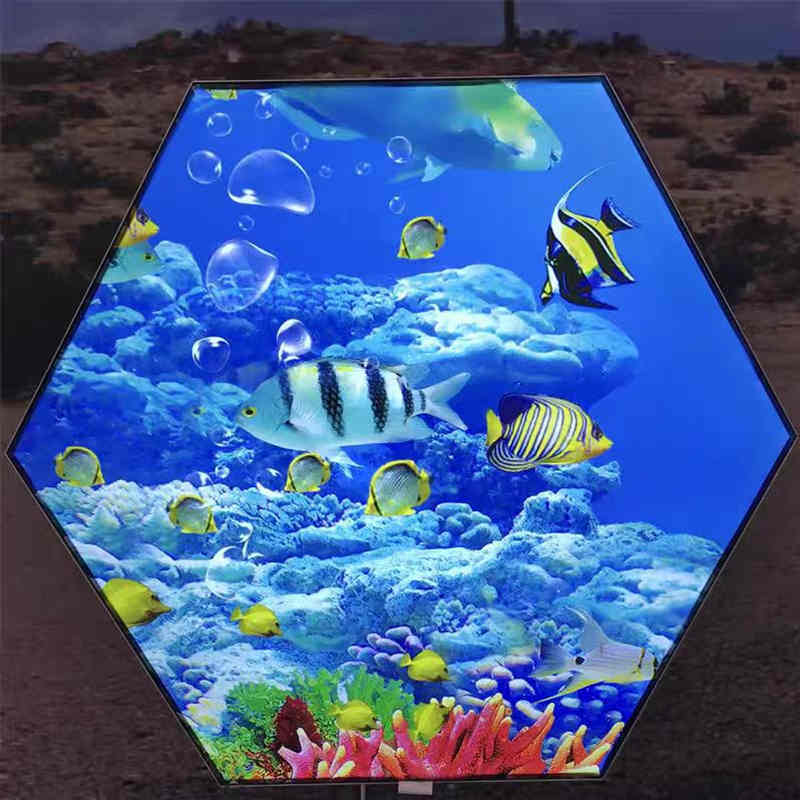

Tension fabric LED light box shapes.
Custom print your graphics.
Profile surface finish color as your request.
LED light color and color temperature as your need.

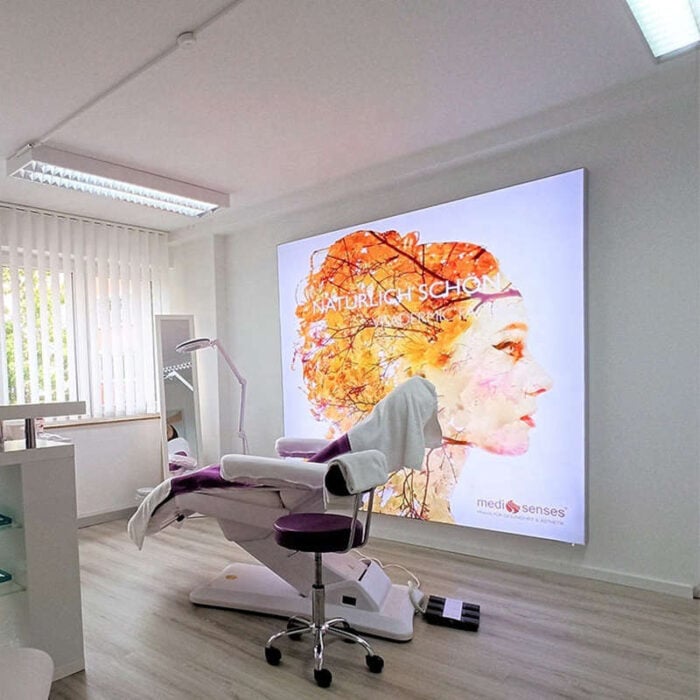

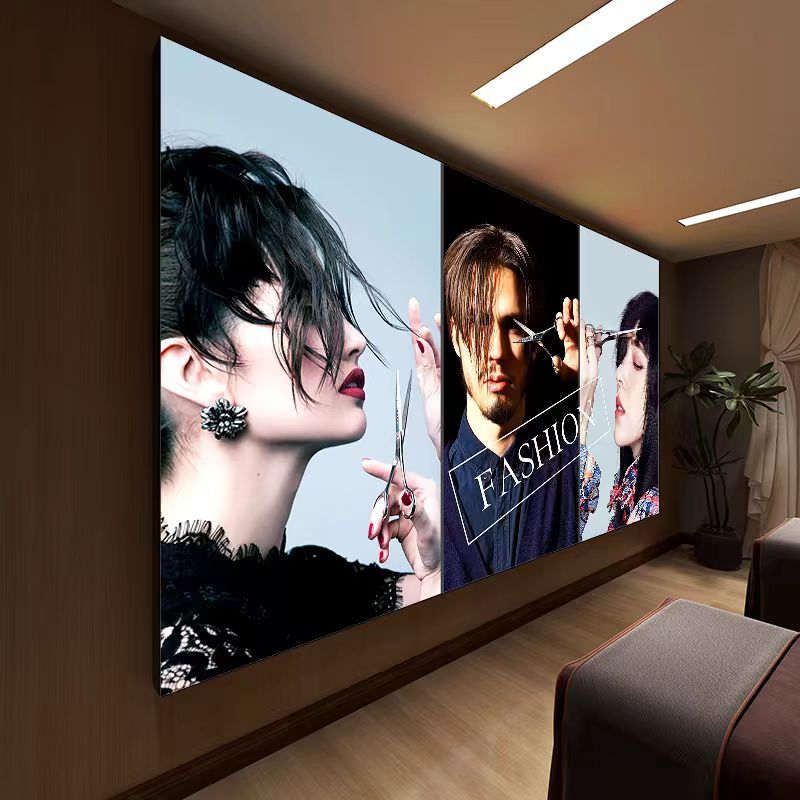

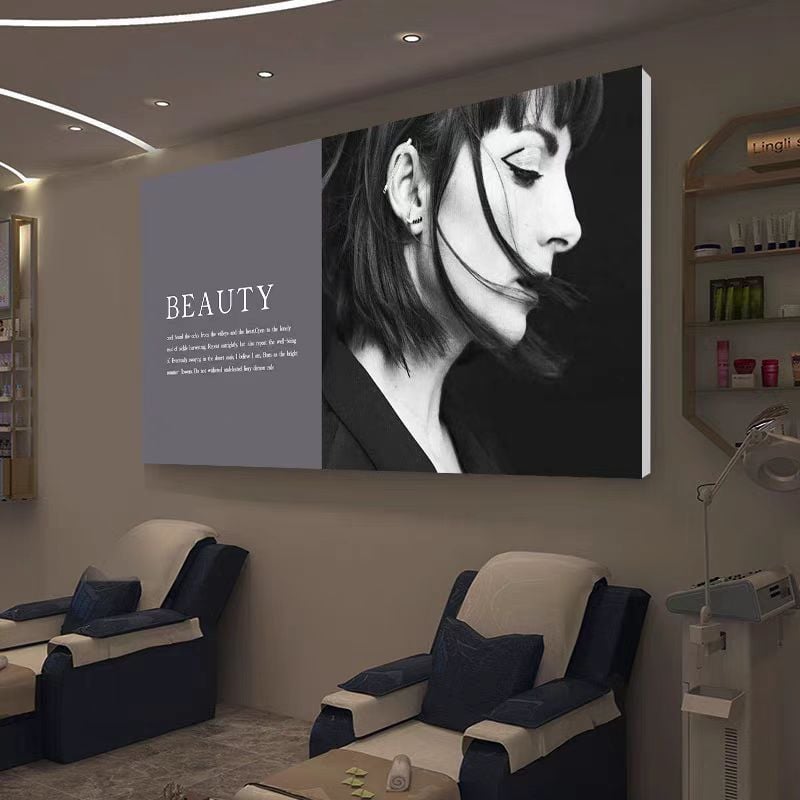

*tension fabric light box for hair salon*

assembled and unassembled tension fabric light boxes shipped optional

Assembled tension fabric lightbox shipped to you, you only need install them onto your wall, or other adopt mounting ways.
Un-assembled stretch fabric light box will be shipped to you, you need assemble it by yourself or a technician at your local, then get it mounted.

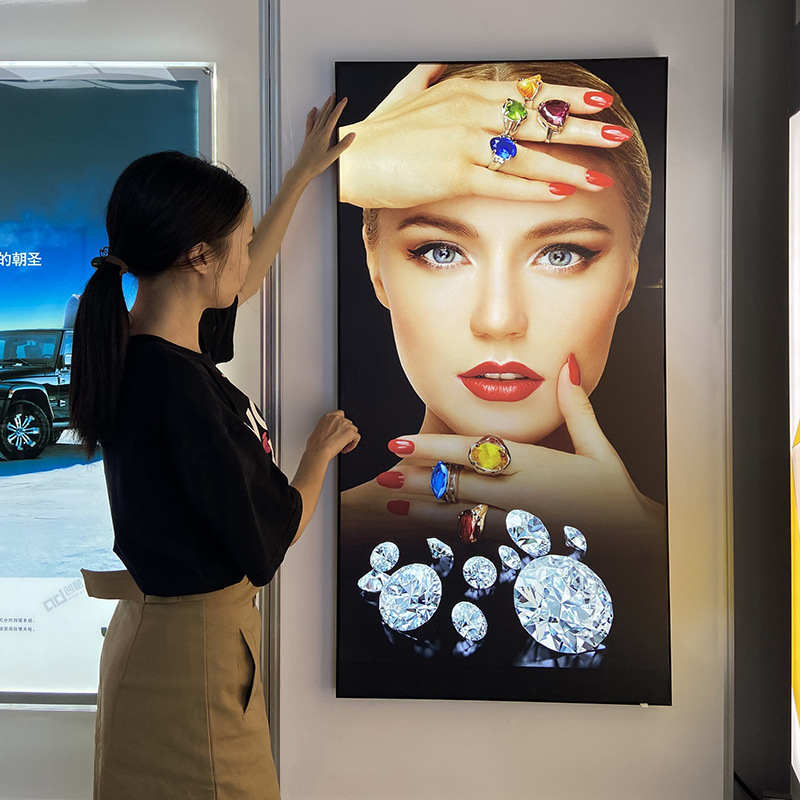

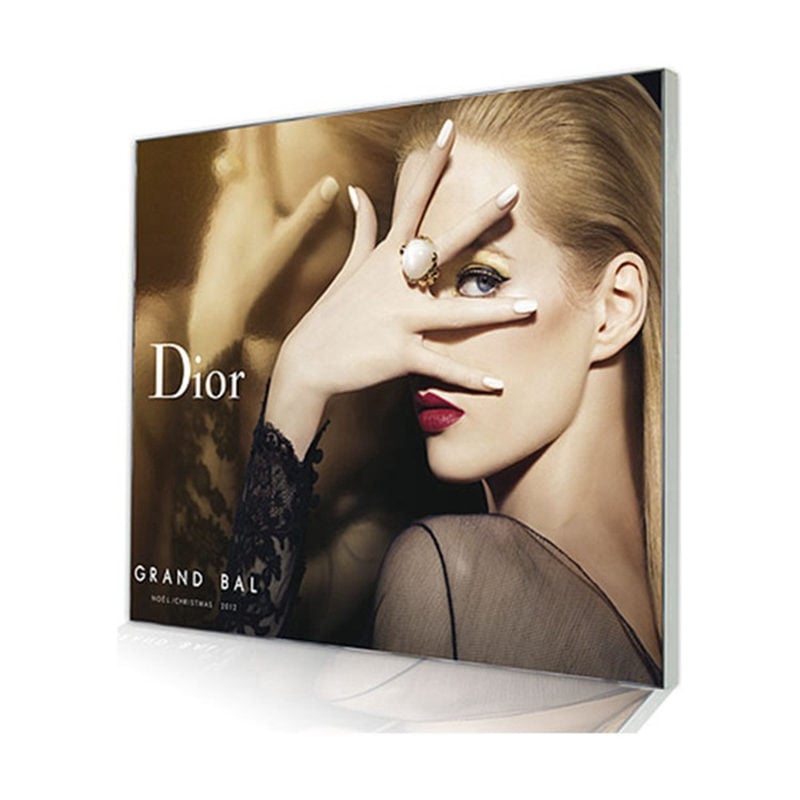

*custom printed wall mounted soft film tension fabric light box*

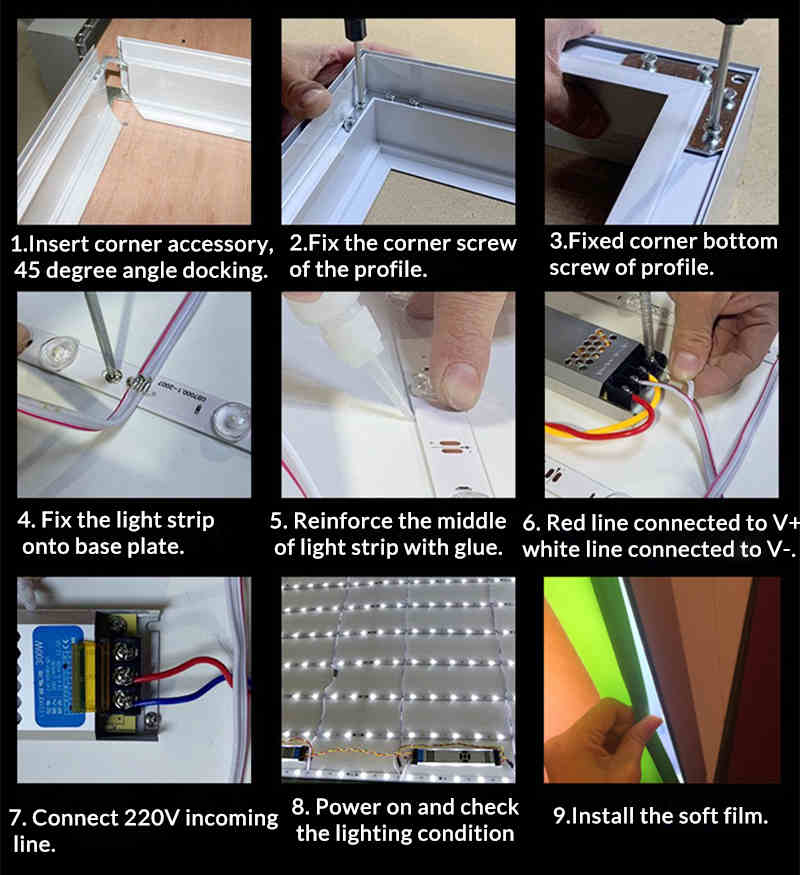

How to assemble tension fabric light box in 9 steps?

Insert corner accessories, 45 degree angle cocking.
Fix the corner screws of the aluminium profile.
Fixed corner bottom screws of profile.
Fix the light strip onto base plate.
Reinforce the middle of light strip with glue.
Red line connected to V+, white line connected to V-.
Connect 220V incoming line.
Power on and check the lighting condition.
Install the fabric.

*double sided tension fabric light boxes aluminium profiles various sizes parameters*

What is tension fabric for tension fabric lightbox?

Tension fabric for tension fabric light box is a specialized type of stretchy fabric that is designed to be used in combination with LED light sources in lightbox applications.

It is made from soft films with excellent elastic properties, allowing it to be easily stretched and fitted over aluminium frame of a tension fabric lightbox to create a smooth and wrinkle free surface.

This fabric has high light transmittance, enabling LED lights to shine through evenly and brightly, thereby enhancing visual effect of lightbox.

It is also durable, resistant to fading and tearing, and can be printed with various graphics and images, making it a versatile choice for advertising, signage, and decorative purposes.

Our quality tension fabrics

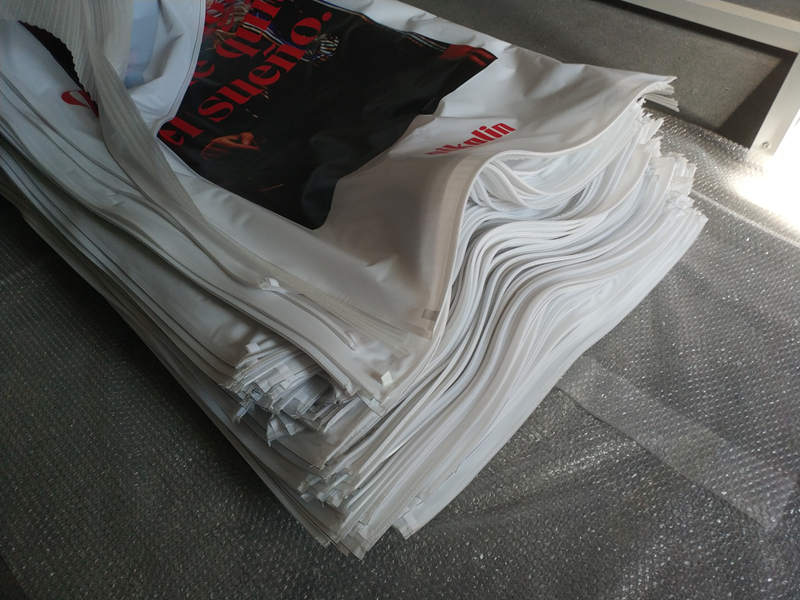

*silicone strip sewn edged tension fabrics for tension fabric light box*

*Quality 0.22mm thickness tension fabrics for tension fabric light box*

Applications

Tension fabric lightbox sign is widely used in stores, shops, exhibition, trade show, booth, shopping malls and streets to display promotional information and brand logos, attracting customers’ attention.
