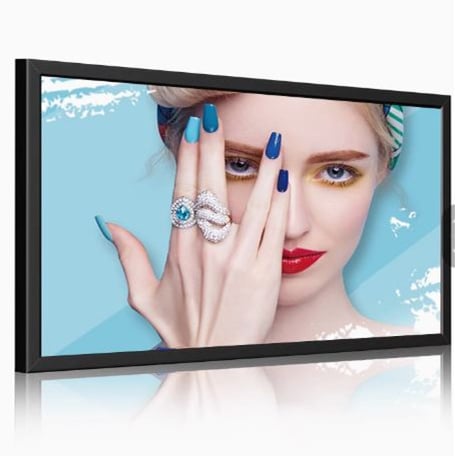

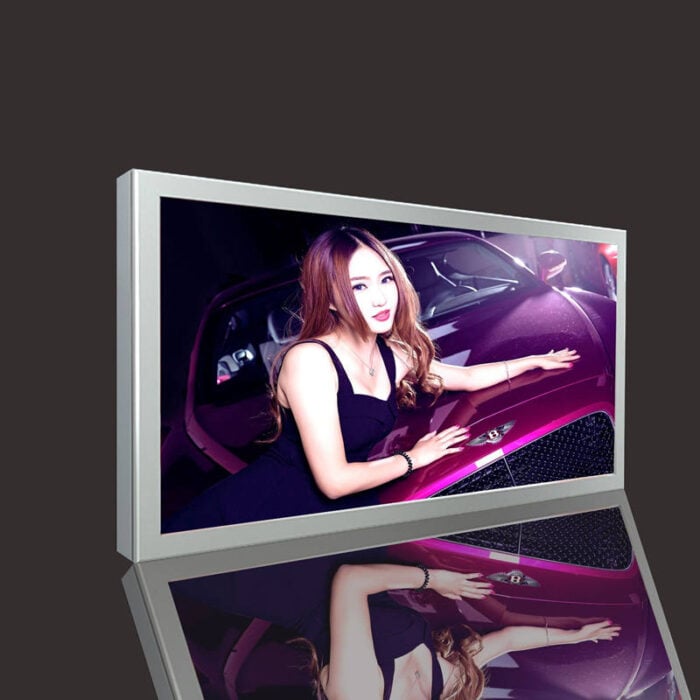

Outdoor Snap Frame Fabric Lightbox Waterproof Windproof

The best feature for outdoor snap frame fabric lightbox is that its size has no limitations than other LED light boxes and can well resist wind, rainy, ultraviolet, even harsh weathers like snowstorm.

You could display huge size graphics with your business messages and advertisements on the shopping mall building exterial wall on as you want, it is easy to be opened to change your graphics from its 4 front sides.



Material: UV film fabric, 6063 aluminum alloy profile, LED light

Aluminum frame depth: 9cm, 10cm, 12cm

Aluminum wall thickness: 1.8mm for indoor and outdoor, 2.5mm for outdoor

Frame color: balck, white, silver, customizable

Maximum size: no limitation

LED strip light type: high-brightness waterproof diffused LED

Sizes: can be customized into any size

Power: 60W-100W per square meter

Display side: single sided

Suits to voltage: 110V-240V

Mounting method: wall mounted

Color temperture: 6,500K-12,000K, customizable

Waterproof: yes

Waterproof rating: IP68

For indoor and outdoor use

Lifetime: 5-8 years

Power supply warranty: 3 years

Ideal for used for display at exterior walls, storefronts, shopping malls, train stations, airports, subway stations

Outdoor snap frame fabric lightbox features

  • Outdoor snap frame fabric lightbox light source: LED high-power reflective lens lamp.
  • High brightness LED backlight, 180 degree ultra wide angle illumination, uniform and no shadows.
  • 4 side snap frame lighted fabric sign is durable, rainproof, windproof, heat-resistant, long-lasting, and easy to install.
  • High brightness and energy saving, waterproof, even and consistent LED light.
  • Seamless corner splicing profiles into super large format LED fabric light box as you want.
  • Profile thickness 100mm, width 100mm, wall thickness 3.0mm, customizable.
  • High quality aluminium alloy outer frame, optional aluminium shapes, thickened, sturdy, and durable lightbox profile. Precision 45-degree corner cutting, precise alignment, 4-sided tensioned image fixation, resistant to strong winds.

  • Backlit source installed inside of the light box, envery-saving and environment-friendly.

  • For super large size exterior snap frame lightbox, they should be combine by smaller profiles, while UV soft film has no limition of its size.
  • Low light decay, long lifespan, high luminous efficiency, strong heat dissipation, radiation-free, low energy consumption.
  • Built-in transformer: aluminum alloy housing, pure copper transformer, superior heat dissipation, stable output.
  • Fabric Scrape: thick and durable, waterproof and UV-resistant, with excellent light transmission. Colors remain vibrant under lighting, withstand wind up to force 10, resist tearing, and endure outdoor weathering for 3-5 years without fading. Features cable ties for secure fastening and easy assembly/disassembly.
  • High-definition UV printing graphics: imported UV ink, waterproof and sun-resistant, high color saturation, true color reproduction, 6-color printing for even higher definition.
  • Professionally designed for uniform light emission, no light penetration, and no dark areas.

  • UV-resistant, non-woven laminated flex banner fabric: thick, durable, waterproof, sunproof, with good light transmission, vibrant colors after lighting, secured with cable ties around the edges for easy installation and removal.

  • Diffuse reflection LED strips: high-quality core, long lifespan, high brightness, wide diffuse reflection angle, no significant light decay.

  • Waterproof power supply: each power supply is 400W, 12V operating voltage; one power supply is sufficient within 4 meters.

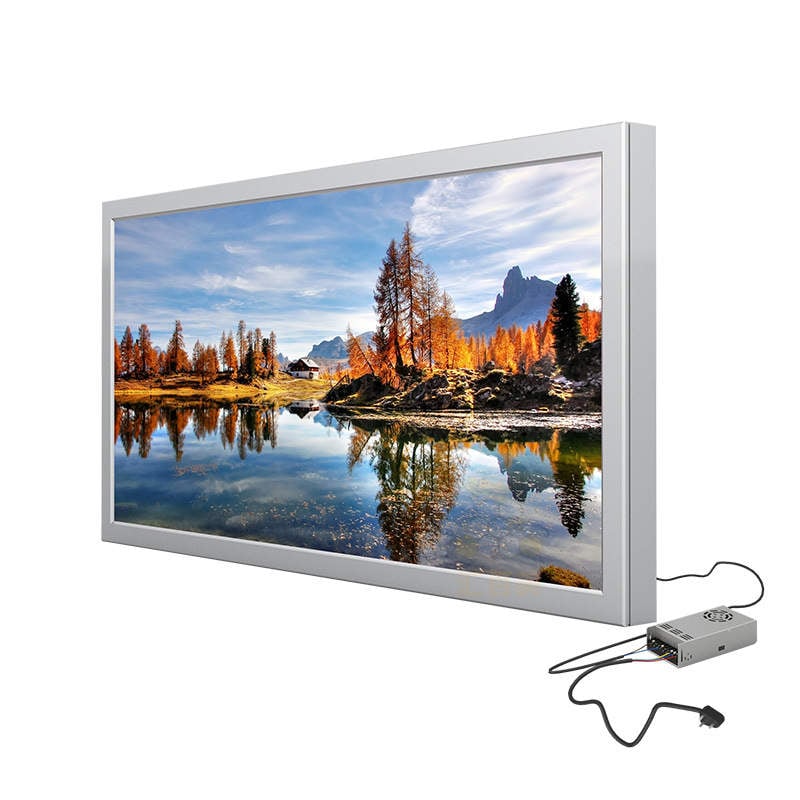

high definition UV soft film outdoor snap frame fabric lightbox

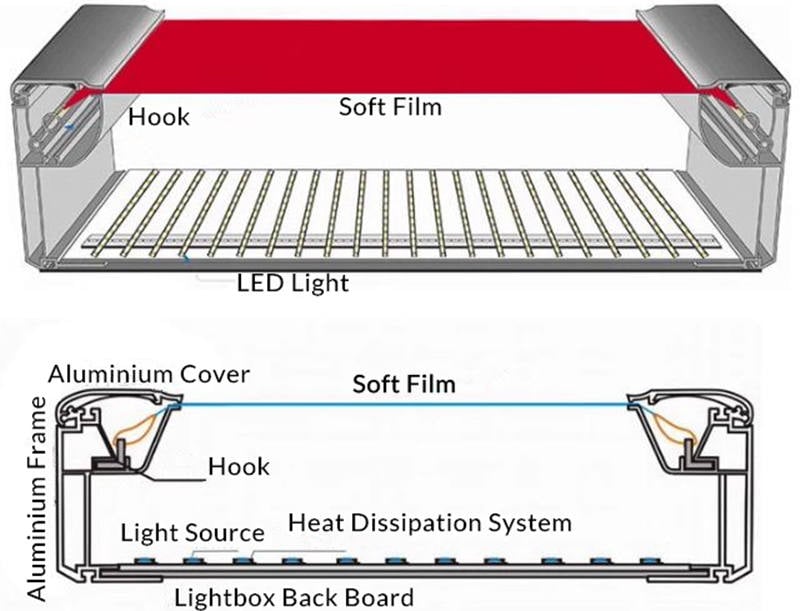

outdoor snap frame fabric lightbox structure
outdoor snap frame fabric lightbox structure
outdoor snap frame fabric lightbox aluminium frame and fabric diagram
outdoor snap frame fabric lightbox aluminium frame and fabric diagram

Our LED diffuse reflection lens lamp vs. ordinary lamp

outdoor snap frame fabric lightbox diffuse LED light

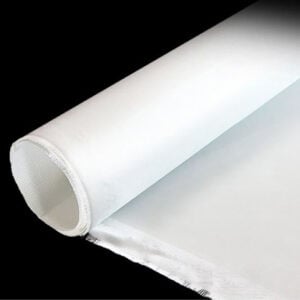

Our quality fabric

quality soft film fabric for outdoor snap frame fabric lightbox
quality soft film fabric
fireproof waterproof outdoor snap frame fabric lightbox
fireproof waterproof fabric

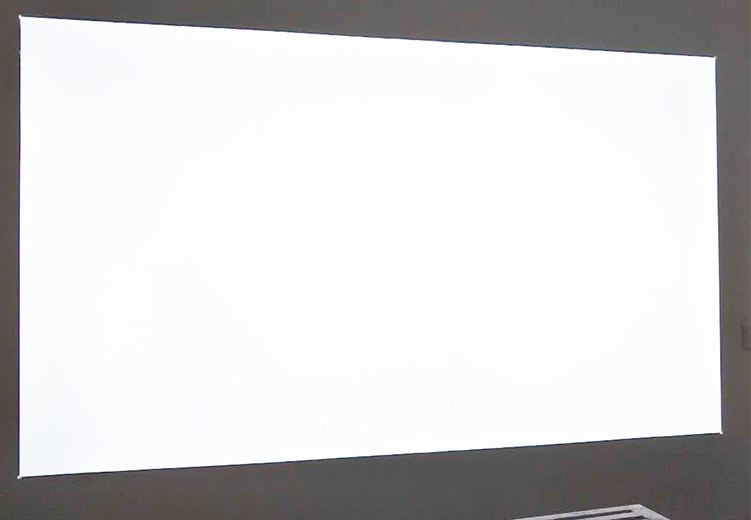

high transmittance outdoor snap frame fabric lightbox
high transmittance fabric

Outdoor snap frame fabric lightbox aluminum frame advantages

  • Deformation-resistant: 1.8-2.5mm reinforced aluminum withstands loads without deformation.
  • Joint installation: corner bracket reinforcements make installation simple, convenient, and stable.
  • High-toughness spring clip: open-type design of the high-toughness spring clip ensures easy assembly and excellent stability.

outdoor snap frame fabric lightbox aluminium frame advantages

double corner connectors of outdoor snap frame fabric lightbox
double corner connectors of outdoor snap frame fabric lightbox
outdoor snap frame fabric lightbox frame LED light and transformer
outdoor snap frame fabric lightbox frame LED light and transformer

Other fabric light boxes

Other large light boxes

Gallery

FAQs

Q: Could you custom size on snap frame fabric backlit sign?

A: Sure, your snap frame outdoor fabric LED sign will be custom made to size as you need.

A: Sure, we could make a sample for you to check the quality.

A: Yes, it is waterproof and wind proof which designed speically for outdoor use.

A: Normally 7-14 business days.

A: We will ship out your order by air or sea then deliver to your door.

A: Your light box will be packed with carton box, then packed into wooden box.

A: Custom size for outdoor snap frame fabric light box is 1 unit.

A: Wire to wire or power plug both ok.

A: Both assmebled or unassembled as you need.
